HYBRID GENERATORS

HYBRID ENERGY HES MINI

Hybrid systems are usually used where there is no grid power, or bad-grid areas where utility power is available for just a few hours of the day.

The HES Mini includes a DC generator (high efficiency variable speed diesel engine & Permanent magnet DC alternator) and an energy storage system (High efficiency Li-Ion batteries).

Renewable energy technologies (e.g. - solar, wind) can be integrated directly to the system without the need for any system upgrades based on site suitability. These 48V solar or wind systems that can be connected directly to the DC bus can minimize the need for regular thermal generation (up to 95% reduction in fuel and CO2 emissions). The amount of useable renewable energy will depend on the location (e.g. – solar radiation & space availability or wind speed and capacity factor), battery storage capacity and the load profile. In applications where renewables can fulfill the energy needs, the diesel generator will only be used in situations that renewable resources are not available for prolonged periods (e.g. weather events).

AC power to conventional loads (e.g.- residences, offices, etc) can be provided through an inverter. The cycle is similar where DC generators supplies AC power through the inverter, while simultaneously charging the batteries. Once the batteries are charged, the generator switches off and the batteries power the load through the inverter.

An inverter charger can be used in sites where low cost AC power is available for short periods (bad grid), where the AC power can be used to charge the batteries when available.

DATA SHEET

Hybrid Energy Station (HES) products offer customers a range of power generation and storage options. The HES Mini consists of a powerful engine/battery combination which can be supplemented with wind or solar for an even greener solution.

HES Mini Bringing you value

Ensures continuity of service from the Telecoms provider

Optimized site infrastructure to reduce energy requirements

Modular systems which increase in capacity in line with the site load demands

Integration of solar and wind power

Reduced engine run hours and fuel consumption

Easy retrofit to existing Telecoms sites

Remote monitoring and service support

Performance monitoring and reporting

Integrated Fueling Technology (hardware and software) providing security while accessing and dispensing fuel

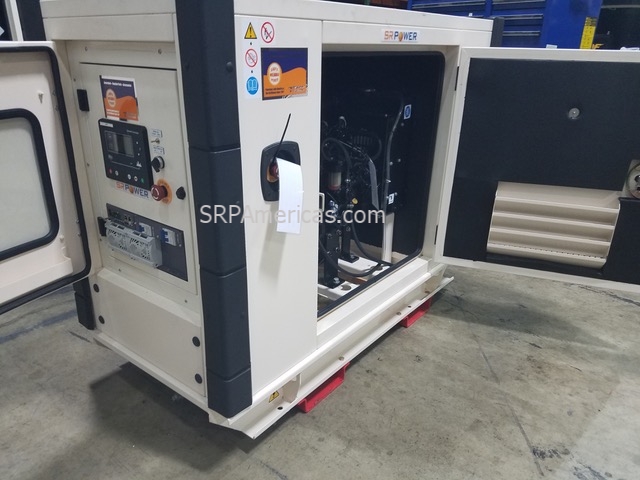

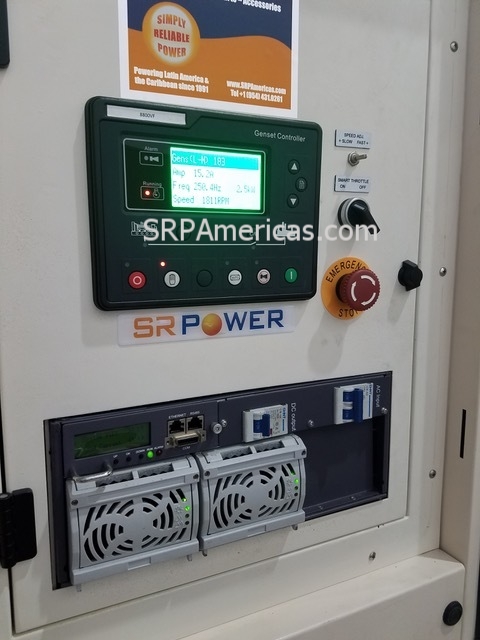

Detail of a Hybrid Generator control panel

Control System

The HYbrid Control System provides an unprecedented control and monitoring of your site.

24/7 remote monitoring and system diagnostics
Deployed globally with GSM coverage
Alerts and alarm indication allowing preventative measures without having to attend site
Monitoring engine, alternator, battery parameters and fuel consumption
